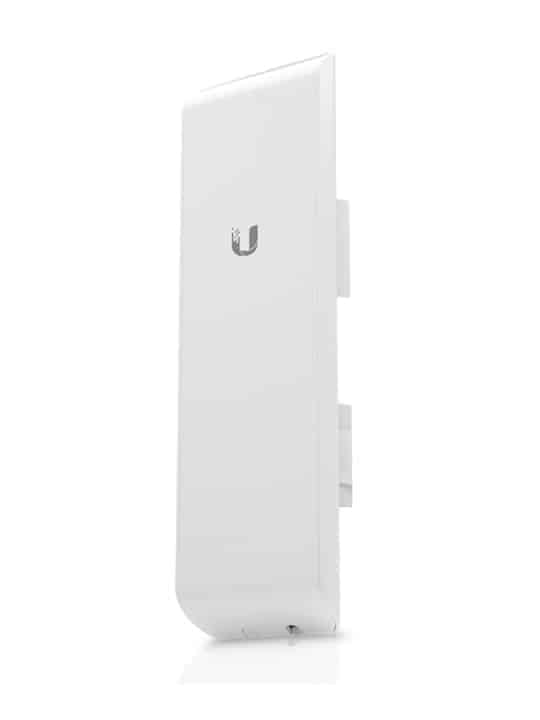

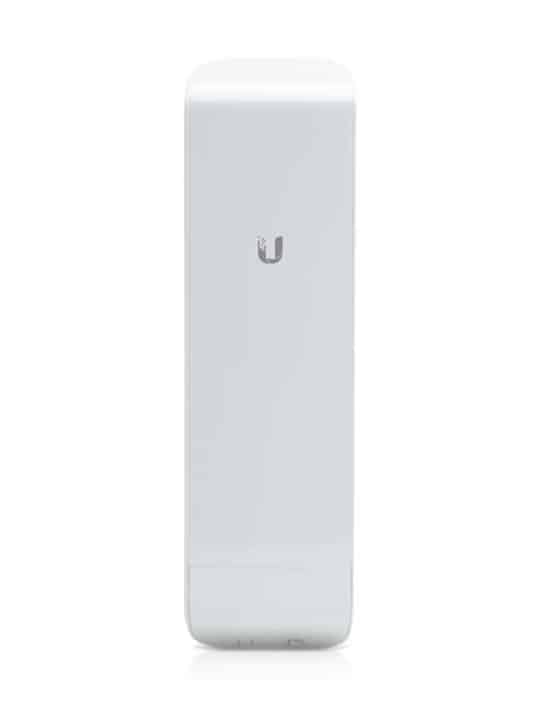

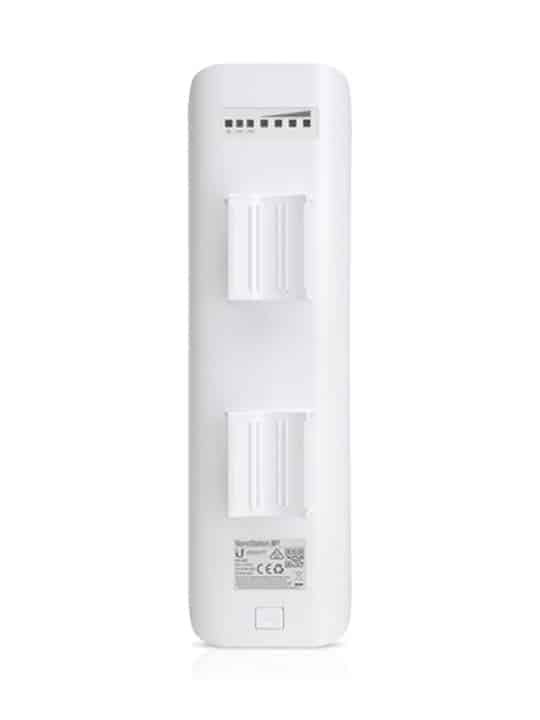

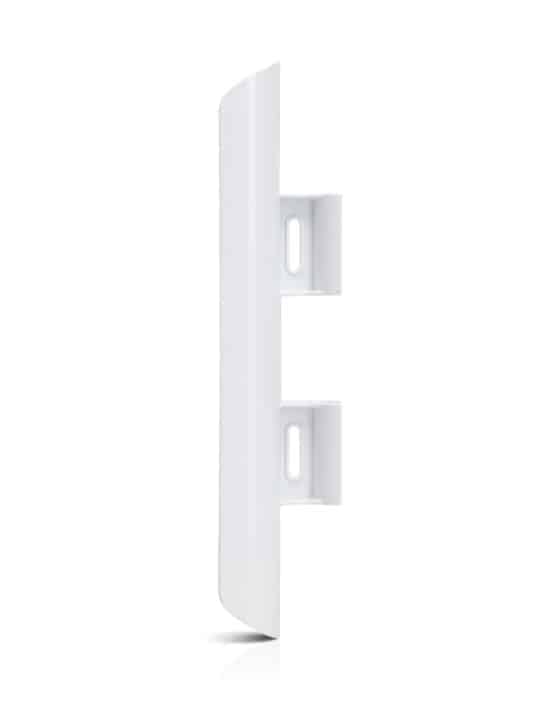

Ubiquiti Nanostation M5, Indoor/Outdoor CPE

Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

Features:

• Compact CPE Design

The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.

• Plug and Play Installation

The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.

• Versatile Application Use

The NanoStation®M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.

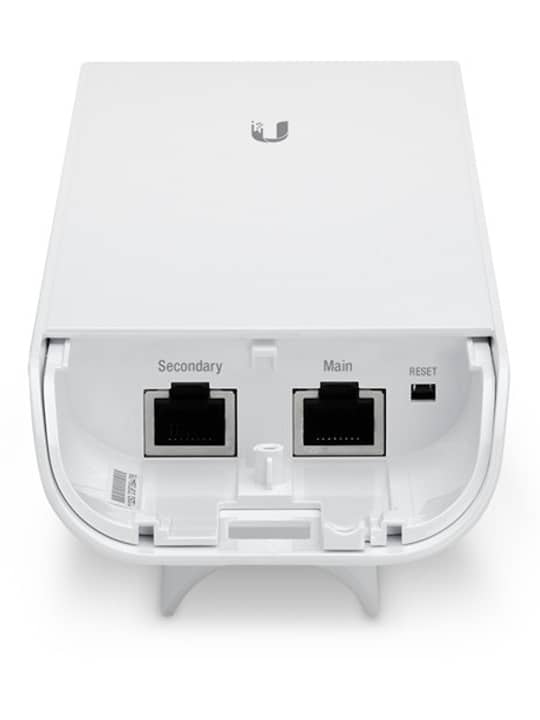

• Dual Ethernet Connectivity

With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

• Powerful airOS® Features

Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.

• Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

• Window/Wall Mounting Kit

Use the NanoStation® Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.

• Wall/Pole Mounting Kit

The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation®M. 90° tilt adjustment allows for easy positioning.

Specifications:

• Power Supply (PoE) 24V, 0.5A

• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Gain 14.6-16.1 dBi

• Networking Interface (2) 10/100 Ethernet Ports

• Processor Specs Atheros MIPS 74Kc, 560 MHz

• Memory 64 MB DDR2, 8 MB Flash

• Cross-pol Isolation 22 dB Minimum

• Max. VSWR 1.6:1

• Beamwidth 43° (H-pol) / 41° (V-pol) / 15° (Elevation)

• Polarization Dual Linear

• Enclosure Outdoor UV Stabilized Plastic

• Mounting Pole-Mount (Kit Included)

• Operating Temperature -30 to 75° C (-22 to 167° F)

• Operating Humidity 5 to 95% Noncondensing

• Wireless Approvals FCC Part 15.247, IC RS210, CE

• RoHS Compliance Yes

• Shock & Vibration ETSI300-019-1.4
