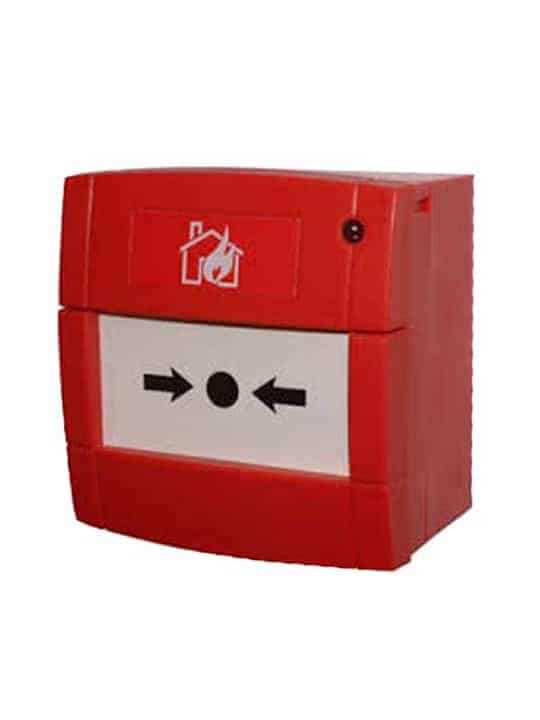

KAC Addressable Manual Call Point Warning Button

Flexible element included. Requires SR1T for surface mounting or a single gang backbox for flush mounting.

Features:

• Unique plug and play installation concept

• Resettable, unbreakable flexible material

• Analogue address communication

• Built-in and surface mounting option

• Integrated LED support

• Conforms to EN54-11

• LPCB approved

• Complete with Resettable Plastic Element & Test / Reset Key

• Suitable for flush or surface mounting

• Morley IAS Protocol

Specifications:

• Operating voltage: DC 15 ~ 32V

• Passive Current: 260µA @ DC 24V

• Alarm Current: 6 mA @ DC 24V

• Operating temperature: -30 ° C ~ 70 ° C

• Humidity: 0% ~ 95% (Non Condensing)

• Protection Class: IP 24D

• Max. Cable Size: 2,5 mm²

• Dimensions: H: 89 mm W: 93 mm D: 27,5 mm (Built-in) – H: 89 mm W: 93 mm D: 59,5 mm (Surface Mounted) – Y: 97,5 mm W: 105 mm D: 75 , 5 mm (Surface Mounted & Transparent Cover)

• Weight: 110 gr (Built-in), 160gr (Surface Mounted)
