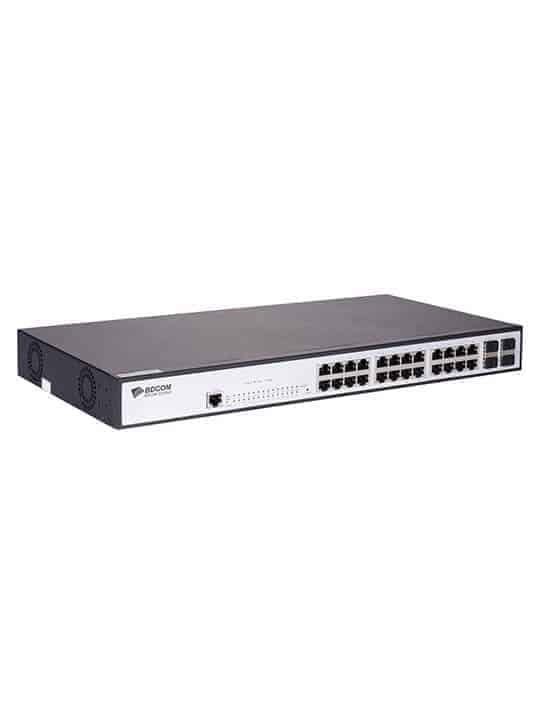

BDCOM 24 Port GbE Layer Fully Manageable 2 Switch

BDCOM S2500-B Series is a new-generation intelligent POE access switch designed for carrier’s IP MAN and enterprise networks. Based on the new-generation high-performance hardware and BDROS platform, it supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenarios.

Enhanced QoS

S2500-B Series supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority, better streamlining carrier’s services

S2500-B Series provides flexible bandwidth control policies, supporting port-/flow-based flow limit, ensuring the line speed forwarding of each port

S2500-B Series supports multiple queue schedule algorithms such as SP, WRR and “SP + WRR”

Security+

Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP- related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions.

Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+.

S2500-B Series supports storm/multicast/unicast limit, ensuring the normal running of equipment in harsh network conditions.

S2500-B Series supports perfect ring detection mechanism, ensuring the long-term stable running of network.

S2500-B Series supports port isolation within the same VLAN, DHCP-Snooping, and IP + MAC + Port binding.

Easy Management and Maintenance

S2500-B Series supports many management modes such as the CLI, Telnet, SSH, SSL and SNMP

S2500-B Series supports the WEB management mode, which is easy and efficient for installing and debugging the device

S2500-B Series supports FTP, TFTP and SFTP

S2500-B Series supports ISSU (In-Service Software Upgrade)

S2500-B Series supports SNMP and BDCOM NMS smart network management platform. The combination realizes automatic equipment discovery, network topology management, equipment configuration management, performance data statistics and analysis and trouble management

S2500-B Series supports Zero Touch Provisioning(ZTP) function to minimize manual operator intervention and helps reduce customers’ initial deployment costs.

Features:

• VLAN

· 4K Active VLAN, QinQ & Selective, QinQ, GVRP, Private VLAN, Voice VLAN

• Spanning Tree

· 802.1D (STP), 802.1W(RSTP) and 802.1S(MSTP)

· BPDU guard, root guard and loopback guard

• Multicast

· IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter

• IP

· Static route, 512 routing table, IPv4/v6 dual stack

• QoS

· CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based QoS,

· 802.1P/DSCP priority re-labeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping

• Security

· Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky

· DHCP Snooping and option 82, DAI & IP source guard, PPPoE+, IEEE 802.1x, Radius and BDTacacs+

· L2/L3/L4 ACL flow identification and filtration

· Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc.

· Broadcast/multicast/unknown unicast storm-control

· MD5, SHA-256, RSA-1024, AES256, etc.

• Reliability

· Static/LACP link aggregation, Interface backup

· EAPS and ERPS

· ISSU

• Management

· Console, Telnet, SSH v1/2, HTTP, HTTPS

· SNMP v1/v2/v3, RMON

· TFTP, FTP, SFTP

· NTP

· ZTP(Zero Touch Provisioning)

· SPAN, RSPAN

• Accessories

· Power cord, rackmount kits, console cable, anti-slipping pad

• Environment

· Operating temperature/humidity: 0℃-50℃,10%-90% non-condensing

· Storage temperature/humidity: -20℃ -70℃, 5%-95% non-condensing

• Certification

· CE, FCC, ROHS

Specifications:

• Interface: 24 GE TX ports

• Console: 1 RJ45 port, 1 RST button

• Chassis: 440mm x 230mm x 44mm (WxDxH)

• Power supply (AC: 100V-240V, 50Hz±10%): 25W

• Total output BTU (1000BTU/H=293W): 85.32

• Fan number: no

• Noise@25°C（dBA): 0

• MTBF(H): >50,000

• Forwarding mode: Store-forward

• Flash (MB): 16

• DRAM (MB): 128

• MAC: 8K

• Buffer size(MB): 4.1

• Jumbo frame: 9K

• Total SVI: 10
