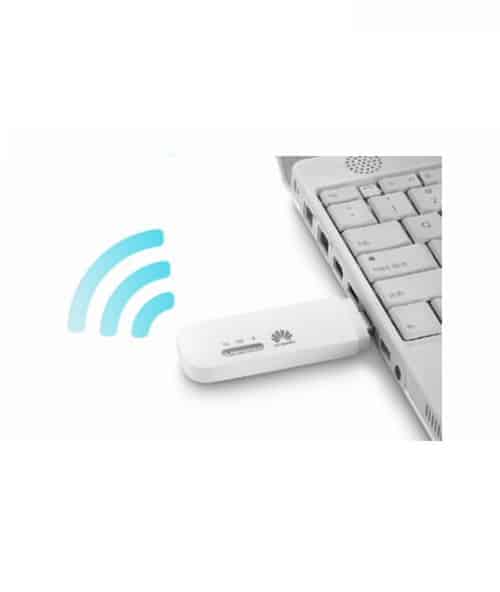

Huawei E8372 LTE WiFi Stick

Specifications
Technical Standard
LTE Rel 9
WCDMA Rel ‘99 plus Rel 5 HSDPA, Rel 6 HSUPA, Rel 7
HSPA+(cat 14), Rel 8 DC-HSPA+(cat 24)
GSM/GPRS/EDGE Rel 99
Wi-Fi: 802.11 b/g/n

Operating Frequency
LTE FDD 2600 MHz:
2500 MHz~2570 MHz(Uplink)/2620 MHz~2690 MHz(Downlink)
LTE FDD 1800 MHz:
1710MHz~1785 MHz(Uplink)/1805 MHz~1880 MHz(Downlink)
LTE FDD 700 MHz (B17)
704 MHz~716 MHz(Uplink)/ 734 MHz~746 MHz(Downlink)
LTE FDD 700 MHz (B28)
703 MHz~748 MHz(Uplink)/758 MHz~803 MHz(Downlink)
LTE FDD/DC-HSPA+/HSPA+/HSPA/UMTS 1900 MHz:
1850 MHz~1910 MHz(Uplink)/1930 MHz~1990 MHz(Downlink)
LTE FDD/DC-HSPA+/HSPA+/HSPA/UMTS 2100 MHz:
1920 MHz~1980 MHz(Uplink)/2110 MHz~2170 MHz(Downlink)
LTE FDD/DC-HSPA+/HSPA+/HSPA/UMTS 900 MHz:
880~915 MHz(Uplink)/925~960 MHz(Downlink)
LTE FDD/DC-HSPA+/HSPA+/HSPA/UMTS 850 MHz:
824 MHz~849 MHz(Uplink)/869 MHz~894 MHz(Downlink)
LTE FDD/DC-HSPA+/HSPA+/HSPA/UMTS AWS
1710MHz~1755MHz(Uplink)/2110MHz~2155MHz(Downlink)
LTE TDD 2300 MHz:
2300MHz~2400MHz(Uplink/Downlink)
GSM/GPRS/EDGE 850 MHz:
824 MHz~849 MHz(Uplink)/869 MHz~894 MHz(Downlink)
GSM/GPRS/EDGE 900 MHz:
880 MHz~915 MHz(Uplink)/925 MHz~960 MHz(Downlink)
GSM/GPRS/EDGE 1800 MHz:
1710 MHz~1785 MHz(Uplink)/1805 MHz~1880 MHz (Downlink)
GSM/GPRS/EDGE 1900 MHz:
1850 MHz~1910 MHz(Uplink)/1930 MHz~1990 MHz(Downlink)
WLAN: 2.4 GHz

Memory Capability
128MB Flash, 128MB RAM

Maximum Transmitter Power
LTE: +23 dBm (Power Class 3)
WCDMA/HSPA/HSPA+/DC-HSPA+: +24 dBm (Power Class 3)
GSM/GPRS 850/900MHz：+33 dBm (Power Class 4)
GSM/GPRS 1800/1900MHz：+30dBm (Power Class 1)
EDGE 850/900MHz：+27dBm (Power Class E2)
EDGE 1800/1900MHz：+26dBm (Power Class E2)
WLAN： 802.11b: 13 dBm
802.11g: 11 dBm
802.11n: 9 dBm

Static Receiver Sensitivity
LTE: Compliant with 3GPP TS 36.101(R8)
WCDMA/HSPA/HSPA+/DC-HSPA+: Compliant with 3GPP TS
25.101(R7)
GSM/GPRS/EDGE: Compliant with 3GPP TS 05.05 (R99)

WLAN Speed
802.11b: Up to 11 Mbit/s
802.11g: Up to 54 Mbit/s
802.11n HT20: Support MCS0–MCS7; Up to 72.2 Mbit/s.
Support MCS8–MCS15; Up to 144.4 Mbit/s.
802.11n HT40: Support MCS0–MCS7; Up to 150 Mbit/s.
Support MCS8–MCS15; Up to 300 Mbit/s.

Power Supply
5V/750mA

External Interfaces
USB 2.0 High Speed
microSD Card Slot
standard USIM/SIM card interface
External antenna interface

Key
Reset key

LED
Indicates the status of the E8372

Dimensions
Dimensions: 94 x 30 x 14 mm
Weight: < 50g

Temperature
Operating: –10°C to +40°C
Storage: –20°C to +70°C
Humidity 5% to 95%
