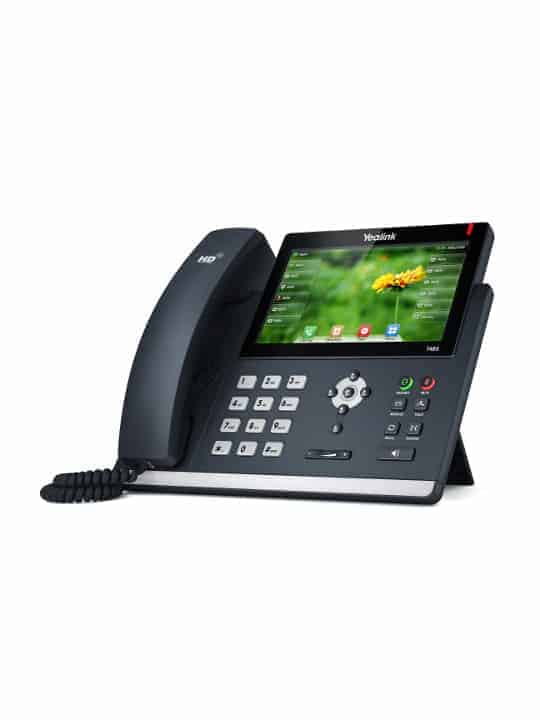

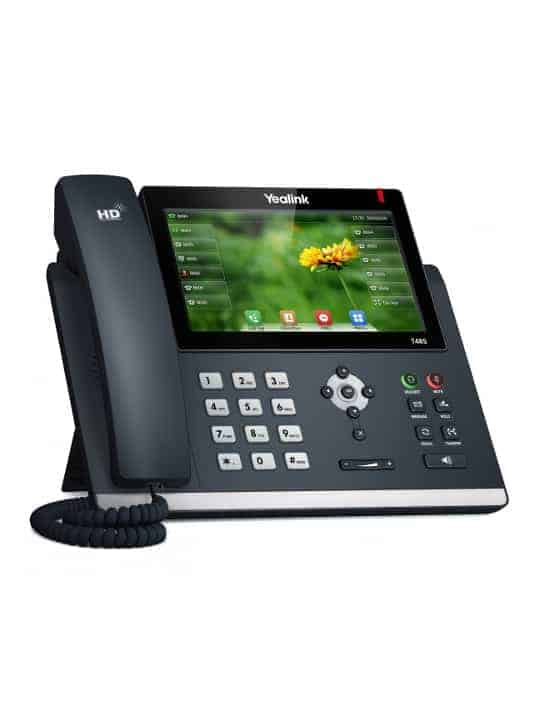

The SIP-T48S IP Phone is a dynamic business communications solution for executives and professionals. This phone offers a large touch screen that makes switching between pages and applications swift, easy and convenient. The SIP-T48S is also with Yealinkโs Optima HD Voice technology and wideband codec of Opus for unparalleled audio clarity. Phone users will think they are sitting in the same room with one another. The phone uses Gigabit Ethernet technology for rapid call handling. Plus, it works in conjunction with Bluetooth USB Dongle and Wi-Fi USB Dongle. The new T4S series offers the same elegant appearance of the T4 line, but with improvements for greater interoperability and collaboration.
Features:
โข HD Audio
Yealink Optima HD Voice technology combines cutting-edge hardware and software with wideband technology for maximum acoustic performance. Being a totally open, highly versatile audio codec, Opus, is designed to perform a higher HD audio quality than other wideband codecs in a high network bandwidth; However, if your current network quality is poor, Opus can provide you with a better audio quality than other narrowband codecs. And its hearing aid compatible (HAC) handset helps the person who is with hearing loss to hear the voice more clearly.
โข Easy Customization and High Expandability
The SIP-T48S has a seven-inch, 800 x 480-pixel, backlit- color touch screen, which enables a rich visual presentation and easy easy navigation. A built-in USB 2.0 port can also be used for Bluetooth, Wi-Fi and USB call recording. The phone supports up to six expansion modules, for up to 240 additional buttons with a screen-based LCD display and LED system. Plus, it has 29 one-touch DSS keys which can be programmed to various features.
โข Efficient Installation and Provisioning
The Yealink T4S series supports efficient provisioning and effortless mass deployment with Yealinkโs Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings, which makes the T4S series simple to deploy, easy to maintain and upgrade. Furthermore, a unified firmware and auto-p template that applies to all T4S phone models (T41S, T42S, T46S and T48S), saves even more time and costs for businesses, as well as simplifies the management and maintenance.
โข Secure Transport and Interoperability
The SIP-T48S uses SIP over Transport Layer Security (TLS/SSL), which is the latest network security technology. Itโs also compatible with leading soft switch suppliers 3CX and Broadsoft Broadworks.
Specifications:
โข HD voice: HD handset, HD speaker
โข Hearing aid compatible (HAC) handset
โข Codecs: AMR-WB (optional), AMR-NB (optional), Opus*, G.722, G.711(A/ยต), G.723.1, G.729AB, G.726, iLBC
โข DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
โข Full-duplex hands-free speakerphone with AEC
โข VAD, CNG, AEC, PLC, AJB, AGC
โข 7″ 800 x 480-pixel color touch screen with backlight
โข 24 bit depth color
โข LED for call and message waiting indication
โข Wallpaper
โข Intuitive user interface with icons and soft keys
โข Multilingual user interface
โข Caller ID with name, number and photo
โข Screensaver
โข Power saving
โข 29 one-touch DSS keys
โข 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
โข 6 navigation keys
โข Volume control keys
โข Illuminated mute key
โข Illuminated headset key
โข Illuminated hands-free speakerphone key
โข Dual-port Gigabit Ethernet
โข Power over Ethernet (IEEE 802.3af), class 3
โข 1 x USB port (2.0 compliant)
โข 1 x RJ9 (4P4C) handset port
โข 1 x RJ12 (6P6C) EXT port: Supports up to 6 Expansion Modules for an attendant console application
โข Wall mountable (optional)
โข External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
โข Power consumption (PSU): 2.2-4.9W
โข Operating temperature: -10~50ยฐC (+14~122ยฐF) Configuration: browser/phone/auto-provision
โข Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
โข Auto-provision with PnP
โข Zero-sp-touch, TR-069
โข Phone lock for personal privacy protection
โข Reset to factory, reboot
โข Package tracing export, system log SIP v1 (RFC2543), v2 (RFC3261)
โข Call server redundancy supported
โข NAT traversal: STUN mode
โข Proxy mode and peer-to-peer
โข SIP link mode
โข IP assignment: static/DHCP/PPPoE
โข HTTP/HTTPS web server
โข Time and date synchronization using SNTP
โข UDP/TCP/DNS-SRV(RFC 3263)
โข QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
โข SRTP for voice
โข Transport Layer Security (TLS)
โข HTTPS certificate manager
โข AES encryption for configuration file
โข Digest authentication
โข OpenVPN, IEEE802.1X
โข IPv6
โข LLDP/CDP/DHCP VLAN
โข ICE
