Victron Energy Orion-Tr DC-DC Converters Isolated Series

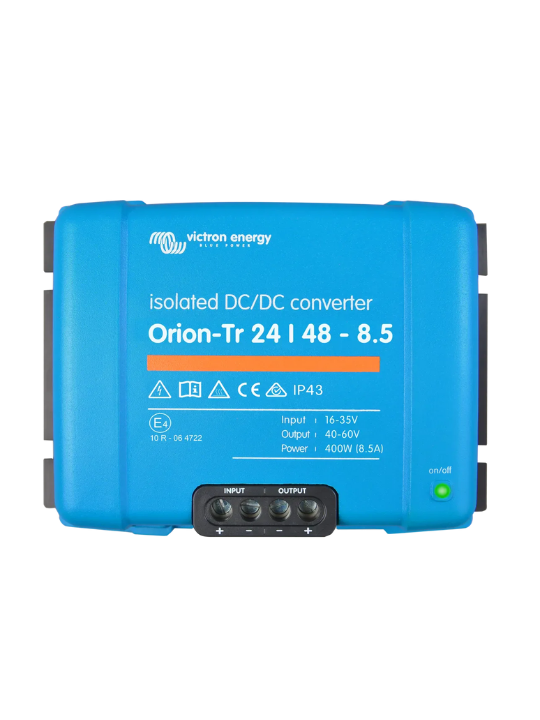

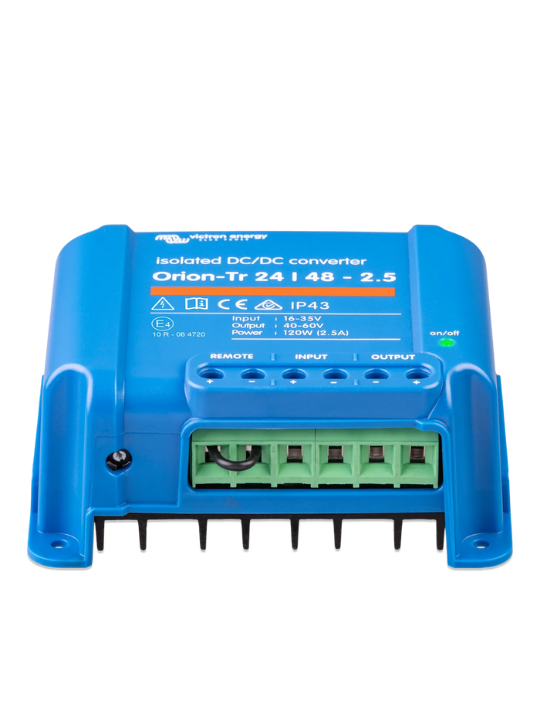

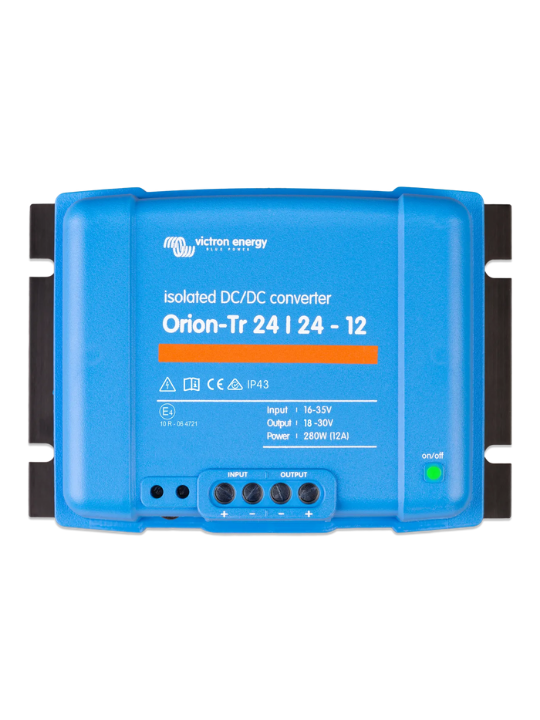

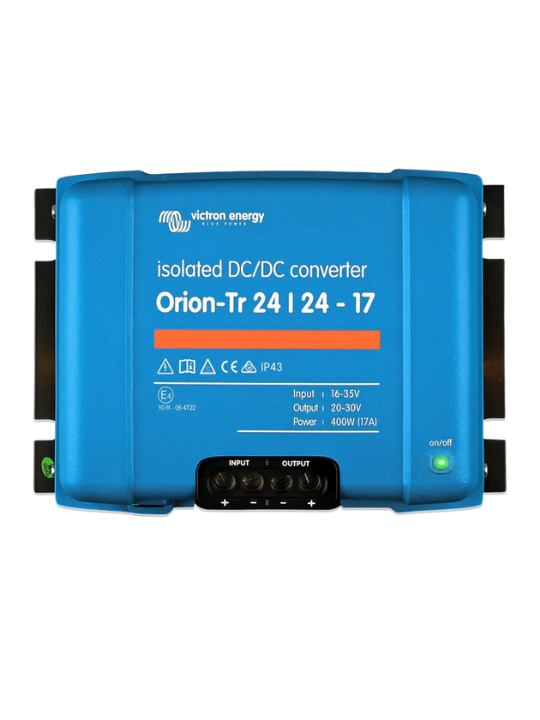

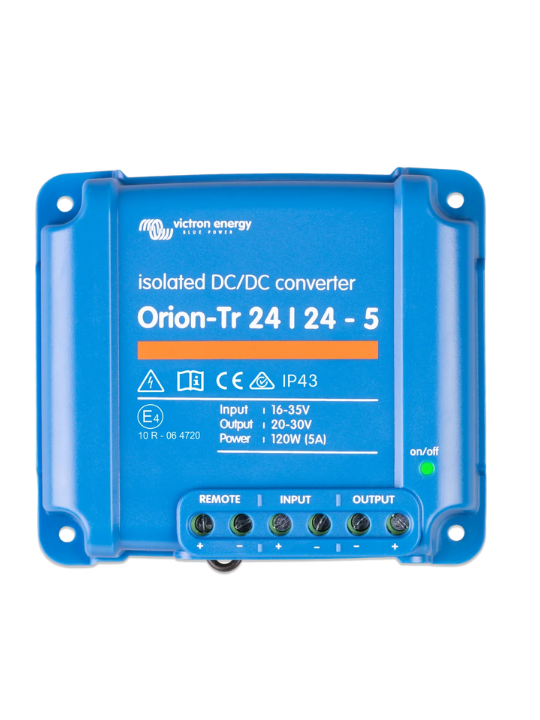

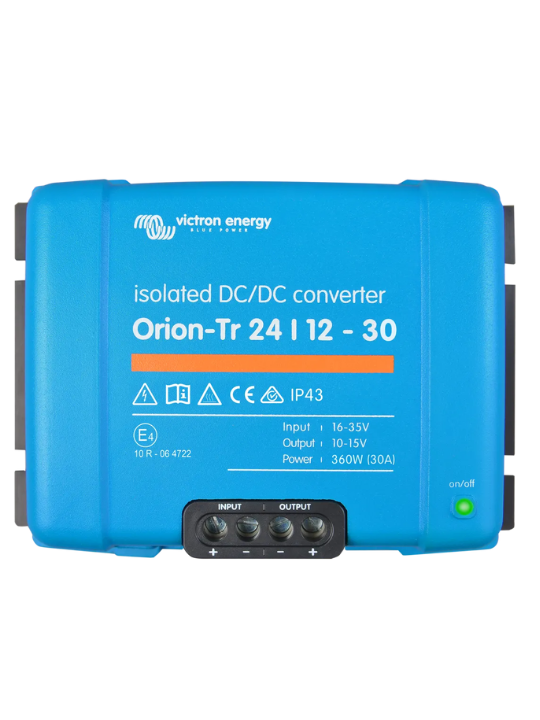

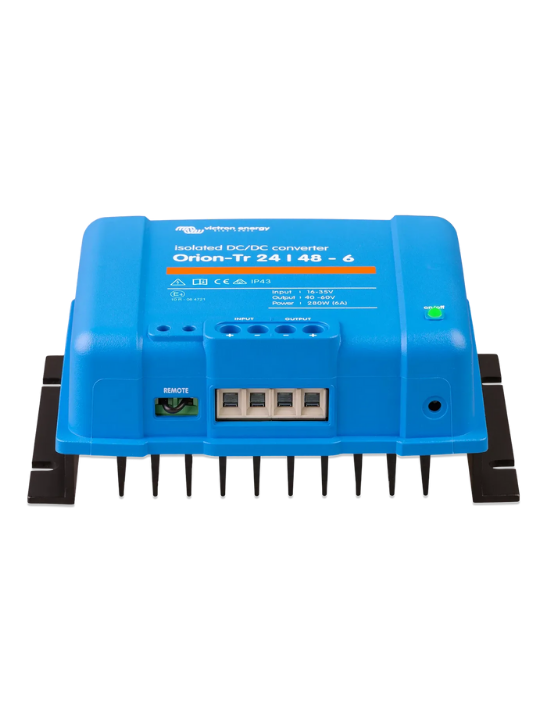

The Victron Energy Orion-Tr series of isolated DC-DC converters are high-quality, robust devices designed to convert one DC voltage to another in demanding applications. With a wide range of input and output voltage combinations and power rates, these converters are suited for large 12 V, 24 V or 48 V battery systems. The series supports models such as 24 V to 12 V at 9 A (110 W), 24 V to 48 V at 2.5 A (120 W), 12 V to 24 V at 10 A (240 W), 48 V to 12 V at 30 A (360 W), 24 V to 24 V at 17 A (400 W), 24 V to 48 V at 8.5 A (400 W), among others (see full list below). The units are part of the “isolated” variant so the input and output are galvanically isolated (200 V DC between input, output and case) to reduce noise and provide protection.

Features & Benefits

• Remote On/Off: The Orion-Tr includes a remote on/off terminal, which eliminates the need for a heavy current switch in the input wiring and allows control via a low-power switch or e.g. engine run/stop switch.
• Short-Circuit Proof & Parallelable: All models are short-circuit proof and can be connected in parallel to increase output current. According to Victron, an unlimited number of units can be connected in parallel.
• IP43 Protection: When installed with the screw terminals facing downward, the unit meets IP43 protection rating — splash water and dust protected to a moderate degree.
• Screw Terminals: Installation is straightforward with screw-terminal connections; no special tools required.
• Wide Temperature Range: Operating temperature range –20 °C to +55 °C, derating current above ~40 °C by ~3% per °C.
• Adjustable Output Voltage: Many models allow output voltage adjustment (within a defined range) for fine-tuning. Note: These isolated converters are not intended for battery-charging applications (Victron suggests using the “Smart” variant for battery charging).
• Galvanic Isolation: With 200 V DC isolation between input, output and casing, the unit provides strong isolation for noise suppression and protection of sensitive loads.

Use Cases

• Battery Systems: Ideal for stepping down or stepping up between battery bank voltages in solar / storage systems, e.g., converting from a 48 V battery bank to a 12 V subsystem for lighting or controls.
• Automotive / Marine / Off-Grid: Suitable for large vehicles, boats, RVs, or off-grid installations where one voltage (24 V or 48 V) must power loads at another voltage. The isolation feature helps where grounds may differ or noise must be minimized.
• Industrial / Telecom: In environments where equipment requires stable DC voltages isolated from the main supply noise, these converters can provide regulated output and galvanic isolation.
• Scaling & Custom Systems: Because units can be paralleled, they are useful where higher currents are required; e.g., multiple units in parallel deliver higher output current than a single unit’s rating.
• Higher Reliability Installations: The remote on/off and rugged design make it suitable for systems where remote control or automatic shutdown is required (e.g., when an engine stops, the converter shuts off).

Value Propositions

• Rugged, professional-grade quality: Victron has a strong reputation globally; offering isolated, high-efficiency conversion in harsh environments (heat, humidity, dust) fits well in regions like Tanzania.
• Flexible voltage combinations: Many African installations use mixed systems (24 V, 48 V). Having one converter series covering many combinations means inventory flexibility and less custom sourcing.
• Scalability & reliability: For installation in solar/hybrid systems in Tanzania where expansion may happen and reliability is paramount (e.g., off-grid or rural electrification), the ability to parallel units is a strong advantage.
• Ease of installation: Screw-terminal, remote on/off, no special tools — the installation is simpler for local technicians, reducing labour costs and complexity.
• Isolation and protection: Environments in East Africa may face electrical noise, unstable input sources, or varied grounding; the isolated nature of the Orion-Tr helps protect sensitive equipment.
• Service and warranty backing: Victron offers a strong global support network and warranty, which adds value in markets where service and reliability are key purchasing considerations.

Local Market Positioning in Tanzania

• Target segments: Solar installers, telecom base‐stations, off-grid rural electrification projects, mobile/vehicle energy systems (e.g., converted vans or boats on Lake Victoria), and industrial systems using 24 V/48 V battery banks.
• Pricing consideration: While higher cost than generic converters, the premium pays off in reliability, protection and lifespan — position it as a “system-critical” component rather than a commodity piece.
• Distributor strategy: Emphasize local stock, local support, technical backup, training for installers, and availability of multiple models to serve 12 → 24, 24 → 12, 48 → 12 etc.
• Marketing message: “Reliable conversion — step up or down between 12/24/48 V reliably. Designed for harsh tropical environments. Scalable. Isolated. Built to last.”
• Installation advice: Ensure proper orientation (terminal downwards for IP43 rating), adequate ventilation (especially in high ambient temperatures), use correct cable cross-section, ensure remote on/off wiring supports system shutdown when needed.
• Warranty/promises: Promote the standard 5-year warranty (as per Victron) and global support, which is a differentiator in this market.
