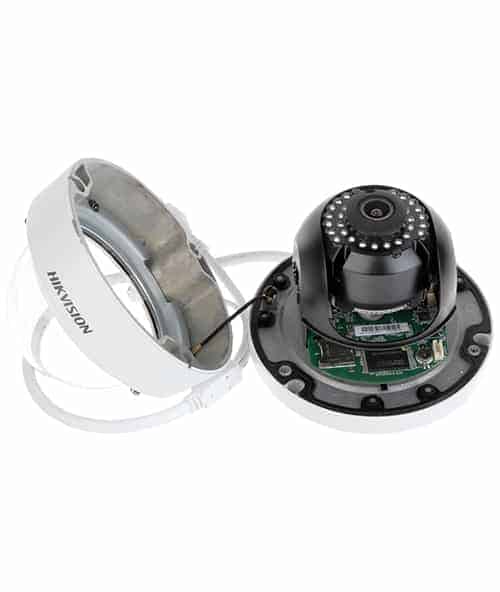

Hikvision 4MP WDR Fixed Dome Network Camera

Camera
Image Sensor: | 1/3″ Progressive Scan CMOS
Min. Illumination: | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Lens: | 2.8mm, 4mm, 6mm @ F2.0
Lens Mount: | M12
Adjustment Range: | Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.264/MJPEG/H.264+
H.264 code profile: | Main Profile
Video bit rate: | 32Kbps~16Mbps
Dual Stream: | Yes
Max. Image Resolution: | 2688 × 1520
Frame Rate: | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC: | Yes, zone configurable
ROI: | Support
Network
Network Storage: | NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: | ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
Alarm: | 1x alarm I/O *only for –S models

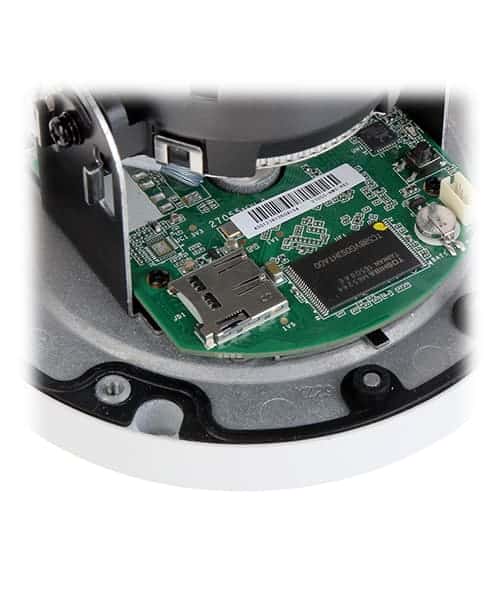

On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: | Yes
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: | Max. 5W
Impact Protection: | IK10
Weather Proof: | IP67
IR Range: | Up to 30m
Dimensions: | Φ111 × 82 (4.4” × 3.2”)
Weight: | 500g (1.1lbs)
NOTE：: | “-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support
the 802.1X protocol.
