Print method: 9-pin serial impact dot matrix
Technology: Serial Impact Dot Matrix
Print Speed: 4.70 lps (40 columns, 16.00 cpi)
Column capacity receipt: Paper width 76 mm, 33 / 40
Character size: 1.2 mm (W) x 3.1 mm (H) / 1.6 mm (W) x 3.1 mm (H)
Character set: 95 Alphanumeric, 48 International, 128 x 12 Graphic
Characters per inch: 13.3 cpi / 16 cpi
Paper Types: Receipt
Copy capability receipt: one copies plus one original
Paper size roll paper: 76.00 ± 0.50 (W) mm x dia 83.00 mm, 69.50 ± 0.50 (W) mm x dia 83.00 mm, 57.50 ± 0.50 (W) mm x dia 83.00 mm
Interfaces: Bidirectional parallel, Drawer kick-out, RS-232
Power Supply: PS-180
Operating voltage: 24 V
Color: Epson Dark Grey / Epson Cool White

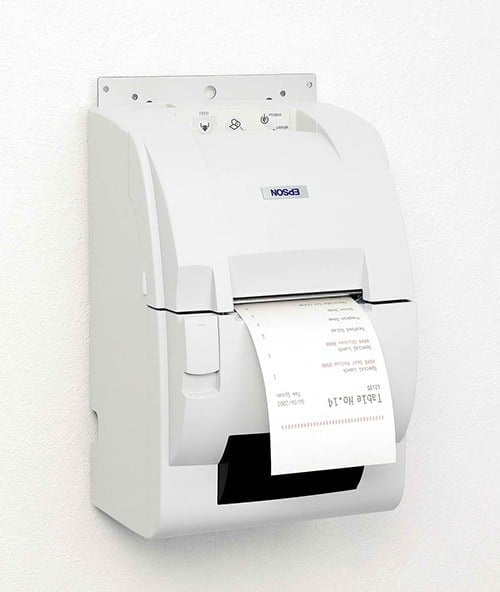

Installation: horizontally, vertically with wall hanging bracket
Interface connectors: D.K.D. function (2 drivers)
Noise Level: Operation: 64 dB (A)
Humidity: Operation 10% – 90%, Storage 10% – 90%
Temperature: Storage -10° C – 50° C
Reliability: 18,000,000 MCBF (Lines), 180,000 MTBF (Hours)
Auto Cutter Life: 800,000 Cuts
Printer Life: 7,500,000 lines
Changeable interface: Yes
Cutter: Partial Cut
Sensors: Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor
EMC Standards: CE marking
Safety standards: TÜV
What’s in the box: Main unit, Ribbon, Roll paper, User manual
