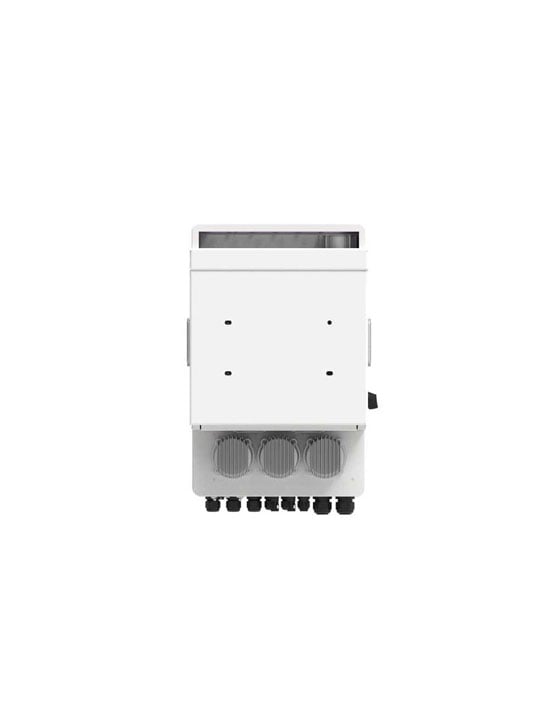

- Model / SKU: Deye SUN-12K-SG04LP3-EU (three-phase, low-voltage hybrid inverter)
- AC Output: Rated 12,000 W; Max apparent 13,200 VA; 230/400 V, 50/60 Hz; THDi <3%; PF 0.8 lead to 0.8 lag
- Surge Capability (off-grid): 2× rated power for 10 s (motor start support)
- Battery: 48 V (40–60 V) Li-ion or lead-acid; Max charge/discharge 240 A; CAN/RS485 BMS comms
- PV Input: Dual MPPT (2+1 strings); Max PV array power 24,000 W; MPPT 200–650 V (start 160 V); Max PV input current 26 A + 13 A; Isc 34 A + 17 A
- Parallel / AC-Coupling: Up to 10 units; supports retrofit and zero-export via CTs
- Generator Integration: G-Start dry contact for diesel generator auto-start
- Bypass / Passthrough: Max continuous 45 A
- Comms & Monitoring: RS485/RS232/CAN; optional Wi-Fi/Bluetooth/4G/LAN
- Enclosure & Environment: IP65; 422 × 658 × 254 mm; ≈38 kg; −40°C to 60°C (derating >45°C)
- Standards: IEC 62109-1/-2, EN 50549-1, G98/G99, VDE-AR-N 4105 (and related)
