Technical Specification
- Double conversion online UPS technology with 15kVA/15kW capacity at 0.9-1.0 unity power factor.
- Supports 230V (single-phase) or 380V/415V (three-phase) input/output configurations with hardwired connections (5-wire 3P+N+E or 3-wire 1P+N+E)
- Embedded network management card for remote monitoring via web browser, SNMP, and Modbus TCP
- Intuitive LCD display interface with multi-language support including English.

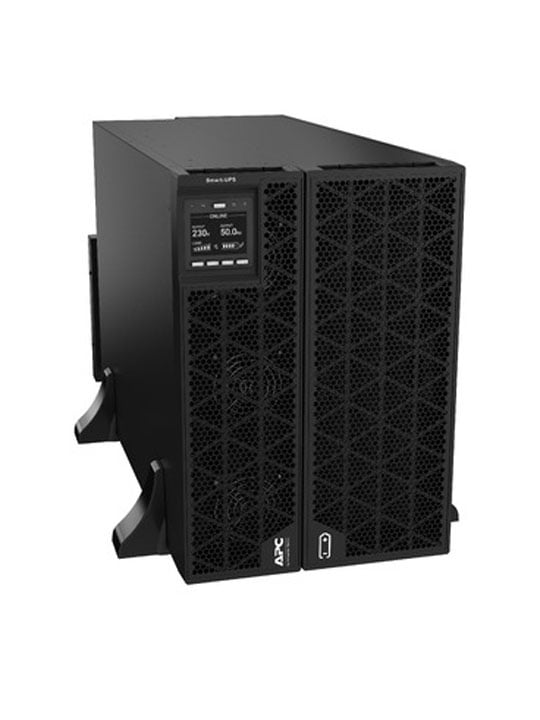

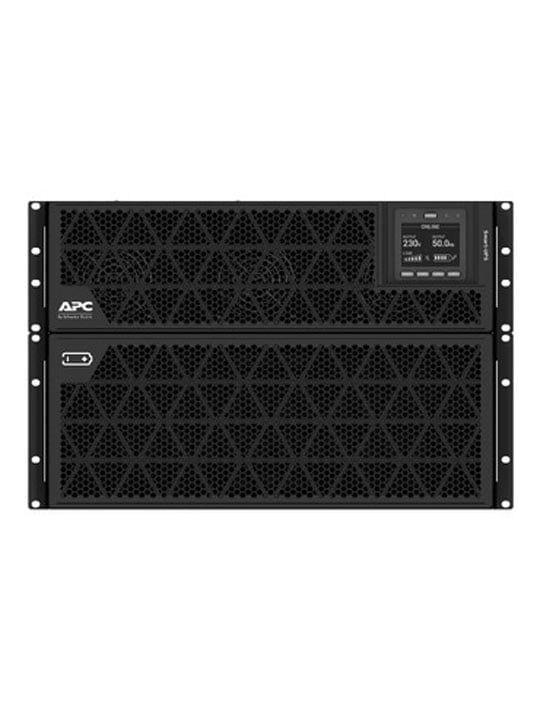

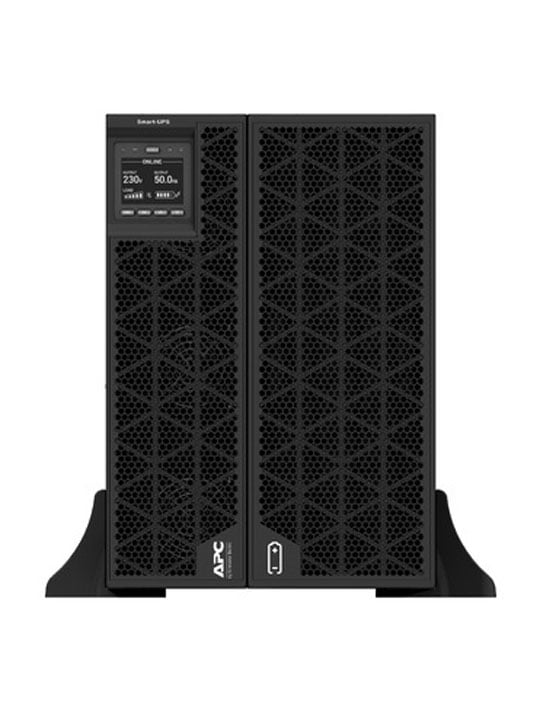

- Configurable for rack or tower installation with dimensions: 432mm width × 715mm depth × 263mm height (6U)
- Extended runtime capability with optional external battery packs.
- Operating temperature range of 0-40°C suitable for Tanzania’s climate conditions.
- Intelligent battery management system with temperature-compensated charging to extend battery life.
- Smart-Slot interface for additional network management cards or sensors.
- Supports ECO mode operation for improved energy efficiency.
