Technical Specification
- Output Power Capacity: 10kVA / 10kW with pure sine wave output.
- Input/Output Voltage: 230V input/output with automatic voltage regulation.
- Topology: True double-conversion online UPS technology with zero transfer time.

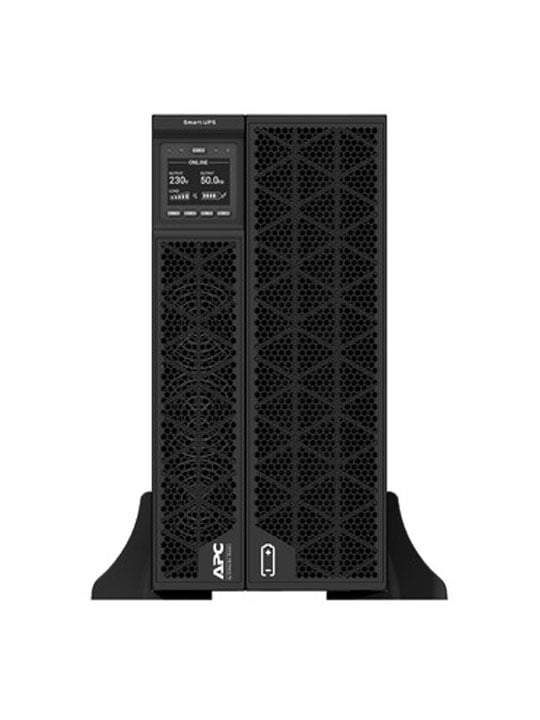

- Form Factor: Convertible rack/tower design with LCD display interface.
- Connectivity: Includes pre-installed network management card for remote monitoring.

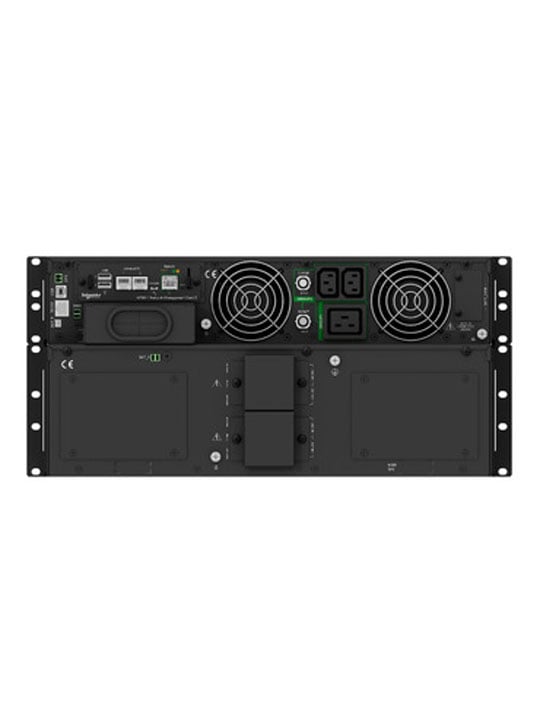

- Output Connections: 2x IEC C13 outlets, 1x IEC C19 outlet, and hardwire 3-wire (H+N+E) connections.
- Battery Type: Maintenance-free sealed lead-acid batteries with suspended electrolyte.
- Expandability: Compatible with additional external battery packs (sold separately)
- Warranty: Standard 2-year warranty on electronics and batteries.
- Dimensions: 432mm width x 719mm depth x 130mm height (3U rack height)
