Technical Specification
- Capacity & Power: 2000VA/1300W output capacity with line-interactive topology and pure sine wave output on battery.
- Input Specifications: 230V AC input with wide voltage tolerance (160-280V) and frequency range (50/60Hz ยฑ3Hz)
- Battery & Runtime: Internal sealed lead-acid batteries providing approximately 55 minutes runtime at typical loads.

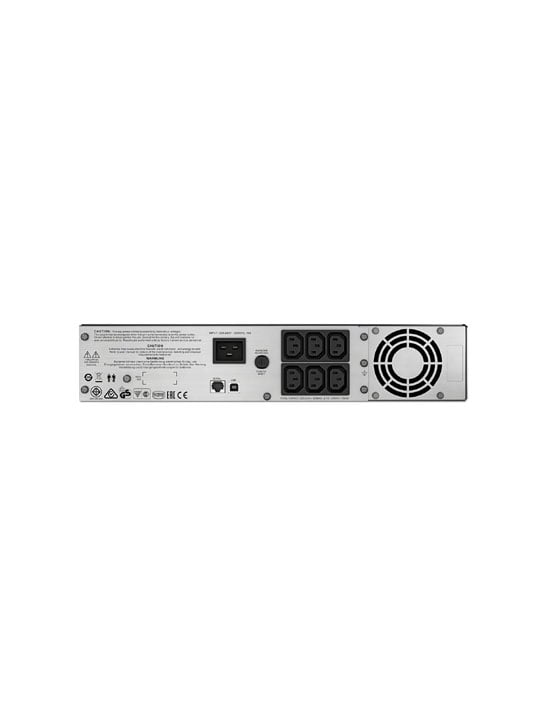

- Output Connections: 6x IEC 320 C13 outlets plus 2x IEC jumper cables for flexible device connectivity.
- Communication Interfaces: USB and serial ports for UPS management software integration and automatic shutdown capabilities.
- Form Factor: Standard 2U rackmount chassis (88mm height) compatible with 19-inch server racks.
- Display & Management: Graphic LCD panel showing real-time power conditions, battery status, load levels, and fault indicators.
- Protection Features: Surge protection, voltage regulation, frequency regulation, and overload protection with audible alarms.
- Environmental: Operating temperature 0-40ยฐC, humidity 0-95% non-condensing, suitable for server room environments.
- Dimensions & Weight: 432mm (W) x 88mm (H) x 660mm (D), approximately 27kg shipping weight.
