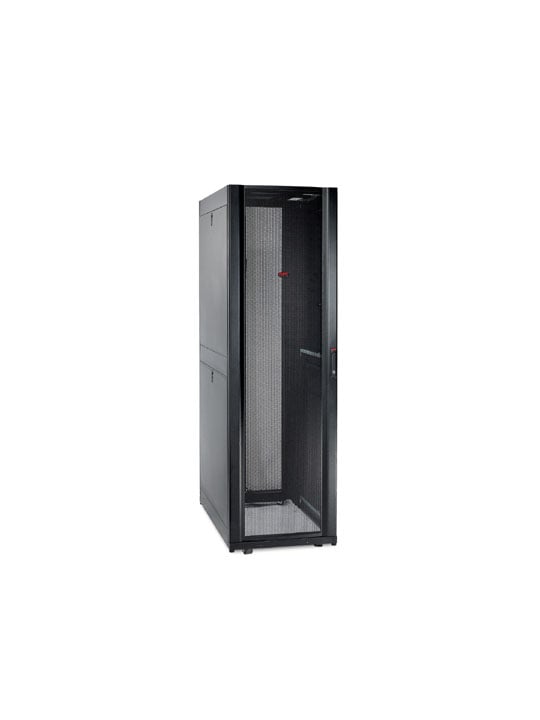

APC NetShelter SX Server Rack Enclosure, 42U Capacity, 600mm Width, Enterprise-Grade Security – AR3100

Technical Specification

• Dimensions: 1991mm Height × 600mm Width × 1070mm Depth (78.4″ × 23.6″ × 42.1″) with 42U of usable rack space.
• Weight Capacity: Supports up to 1,361kg (3,000lbs) of IT equipment on heavy-duty casters for easy movement when needed.
• Frame Construction: Welded steel frame with reinforced mounting rails adjustable in 1/4″ increments for precise equipment placement.

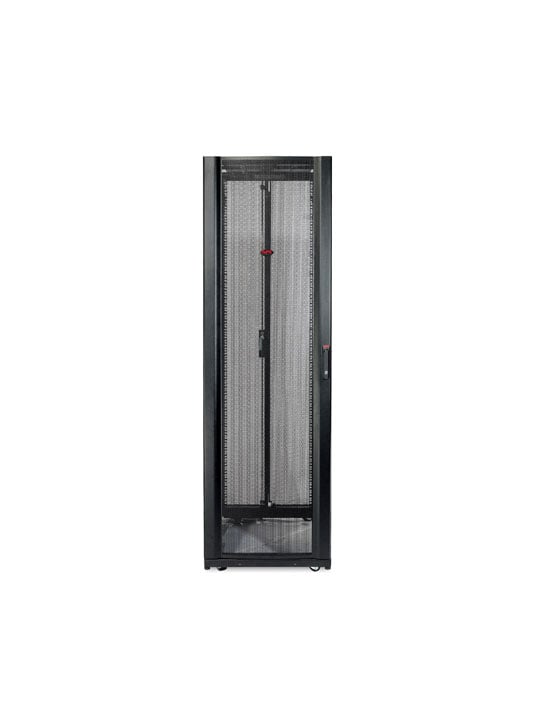

• Door Design: Quick-release hinged front and rear doors (split rear door) with 80% perforation for optimal airflow.
• Side Panel Configuration: Lockable, removable side panels for easy access during installation and maintenance.

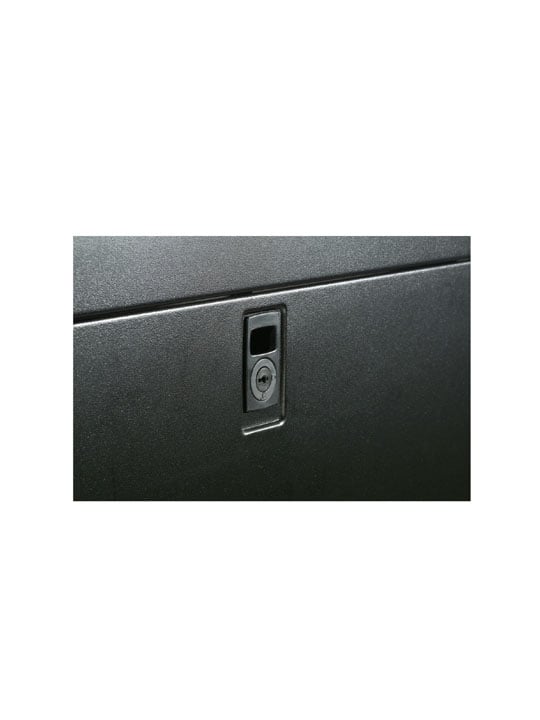

• Security Features: Multi-point security lock system with unique key codes; optional combination lock upgrade available.
• Cable Management: Integrated vertical cable channels, rear channel brackets, and tool-less accessories for organized cabling.
• Environmental Compatibility: Operating temperature range of 0-45°C (32-113°F) with humidity tolerance of 5-95% non-condensing.
• Compliance Standards: UL 60950, EIA-310-E, RoHS, and TAA compliant for government and enterprise procurement requirements.
• Included Accessories: Complete hardware kit with 50 M6 cage nuts and screws, stabilization brackets, and joining hardware.
