Technical Specification
- 15 kVA / 15 kW capacity providing true three-phase input and output (3:3) power protection at 400V nominal voltage.

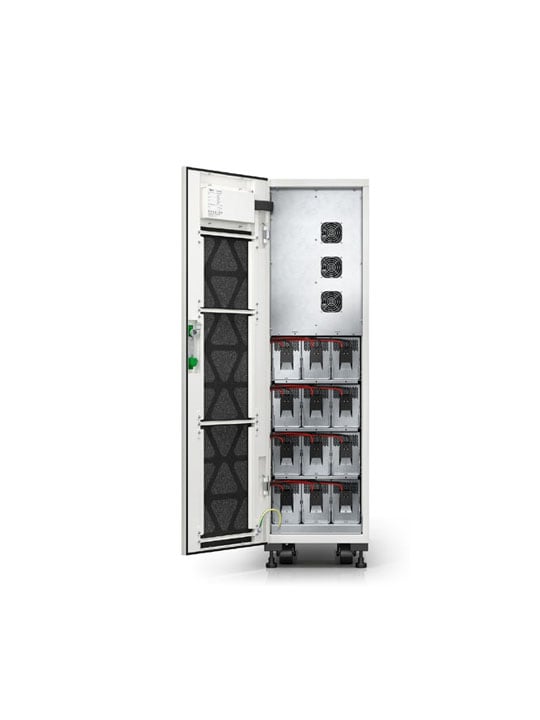

- Internal battery compartment supports 30-40 minutes of runtime at full load, with optional external battery cabinets for extended backup.
- Online double conversion topology with 94% efficiency in normal mode and up to 98% in ECO mode for reduced operating costs.
- Wide input voltage window (304V-477V) ideal for handling Tanzania’s variable power conditions without draining battery power.
- Input power factor correction >0.99 and input current harmonic distortion <3% for clean power utilization.
- Advanced battery management system with temperature compensation extends battery life in hot environments.
- User-friendly LCD display with multiple language support for easy monitoring and control.
- Operating temperature range of 0-40°C with humidity tolerance up to 95% non-condensing.
- Network management card slot for optional remote monitoring and integration with building management systems.
- Comprehensive protection features including short circuit, overload, and thermal protection with SNMP compatibility.
